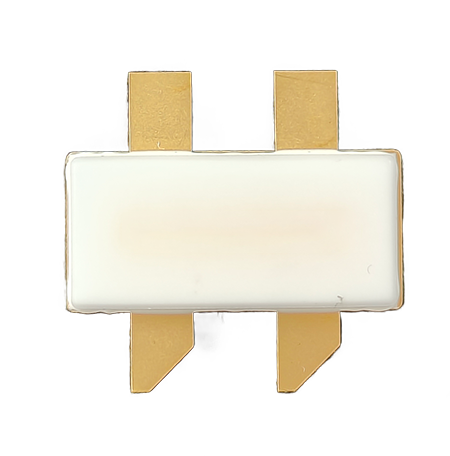

GNNT1254HP is a power amplifier based on GaN HEMT, operating at frequencies ranging from DC to 1.2GHz. The typical saturation output power is 250W at 0.4GHz (Psat). The saturation gain is greater than 18dB at 0.35GHz, and the drain efficiency is above 55%. The packaging form is YJ803 metal ceramic packaging.

Product Features

• Frequency range: DC - 1.2GHz

• Saturation output power (Psat): 250 W at 0.4 GHz

• Saturation gain: 18 dB @ 0.35 GHz

• Gate efficiency @ Psat: 56% @ 0.3GHz

• Working voltage: 28V

• Support Pulsed and CW operation
