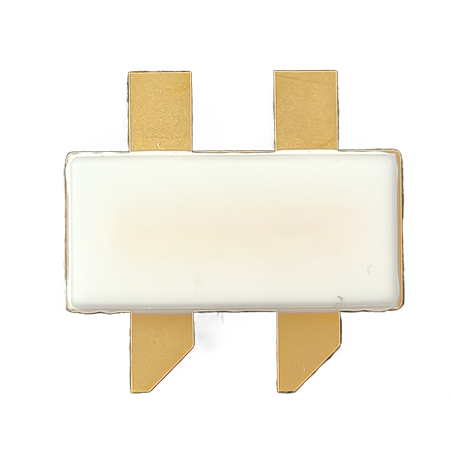

GNNT3052HP is a power amplifier based on GaN HEMT, operating at frequencies ranging from DC to 3.0 GHz. The typical saturation output power is 150W at 2.5 GHz (Psat). The saturation gain is greater than 12 dB at 2.5 GHz, and the drain efficiency is above 55%. The packaging form is YJ803 metal ceramic packaging.

Product Features

• Frequency range: DC - 3.0 GHz

• Saturation output power (Psat): 150 W at 2.5 GHz

• Saturation gain: 12 dB @ 3.0 GHz

• Gate efficiency @ Psat: 55% @ 2.5 GHz

• Working voltage: 28V

• Support Pulse and CW operation
