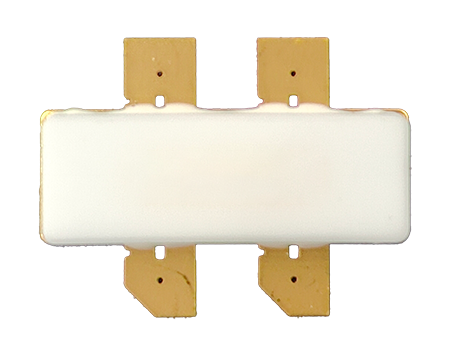

GNNT3151HP is a power amplifier based on GaN HEMT, operating at frequencies ranging from DC to 3.0 GHz. The typical saturated output power is 125W at 3.0 GHz (Psat). The saturation gain is greater than 11dB at 3.0 GHz, and the drain efficiency is above 50%. The packaging form is YJ802 metal ceramic packaging.

Product Features

• Frequency range: DC - 3.0 GHz

• Saturation output power (Psat): 125 W at 3.0 GHz

• Saturation gain: 11 dB at 3.0 GHz

•Gate efficiency @ Psat: 50% @ 3.0 GHz

• Working Voltage: 28V • Supports CW and Pulse operation
