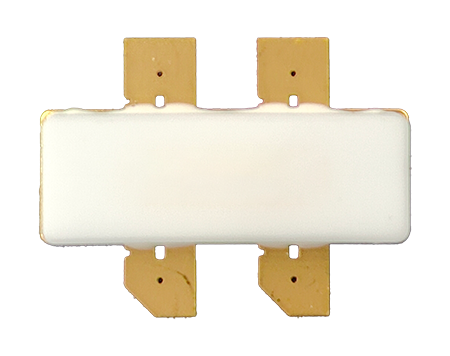

GNNT7551HP is a power amplifier based on GaN HEMT, operating at frequencies ranging from 6.5GHz to 7.5GHz. The typical saturation output power is 125W at 7GHz (Psat). The saturation gain is greater than 8.8dB at 6.7GHz, and the drain efficiency is over 43%. The packaging form is YJ802 metal ceramic packaging.

Product Features

• Frequency range: 6.5 - 7.5 GHz

• Saturation output power (Psat): 125W at 7GHz

• Saturation gain: 8.8 dB @ 6.7 GHz

• Gate efficiency @ Psat: 43.8% @ 6.8 GHz

• Working voltage: 28V

• Support CW and Pulse operation
