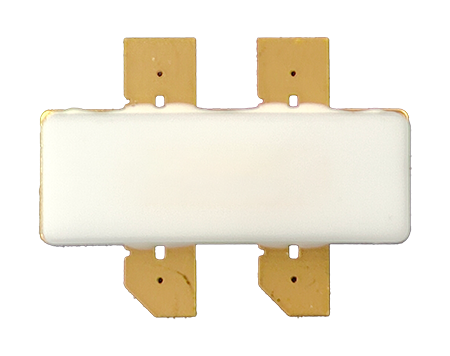

GNNT5251HP is a power amplifier based on GaN HEMT, operating at frequencies ranging from DC to 5.0GHz. The typical saturated output power is 150W at 4.7GHz (Psat). The saturation gain is greater than 11dB at 4.7GHz. The packaging form is metal-ceramic packaging.

Product Features

• Frequency: DC – 5.0GHz

• Saturation output power: 150W @ 4.7GHz

• Saturation gain: 11 dB @ 4.7 GHz

• Working voltage: 28V

•Support Pulsed / CW operation
