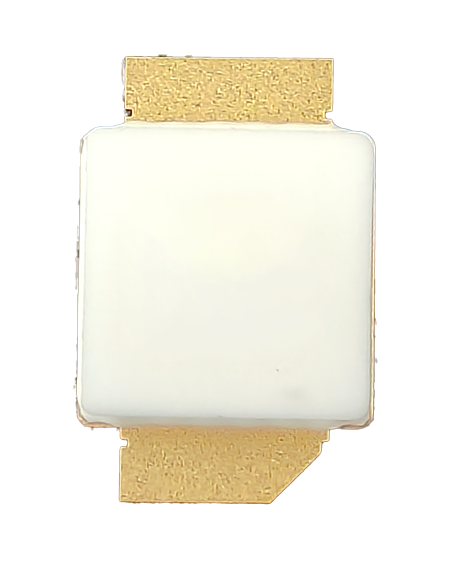

GNNT6046H is a power amplifier based on GaNHEMT, operating at frequencies ranging from DC to 6.0GHz. The typical saturation output power is 40W at 4.0GHz (Psat). The saturation gain is greater than 12dB at 4.0GHz, and the drain efficiency is above 55%. The packaging form is YJ201 metal ceramic packaging.

Product Features

• Frequency range: DC - 6.0GHz

• Saturation output power (Psat): 40W at 4.0GHz

• Saturation gain: 12 dB @ 4.0 GHz

• Gate efficiency @ Psat: 55% @ 4.0 GHz

• Working voltage: 28V

• Support CW and Pulse operation
