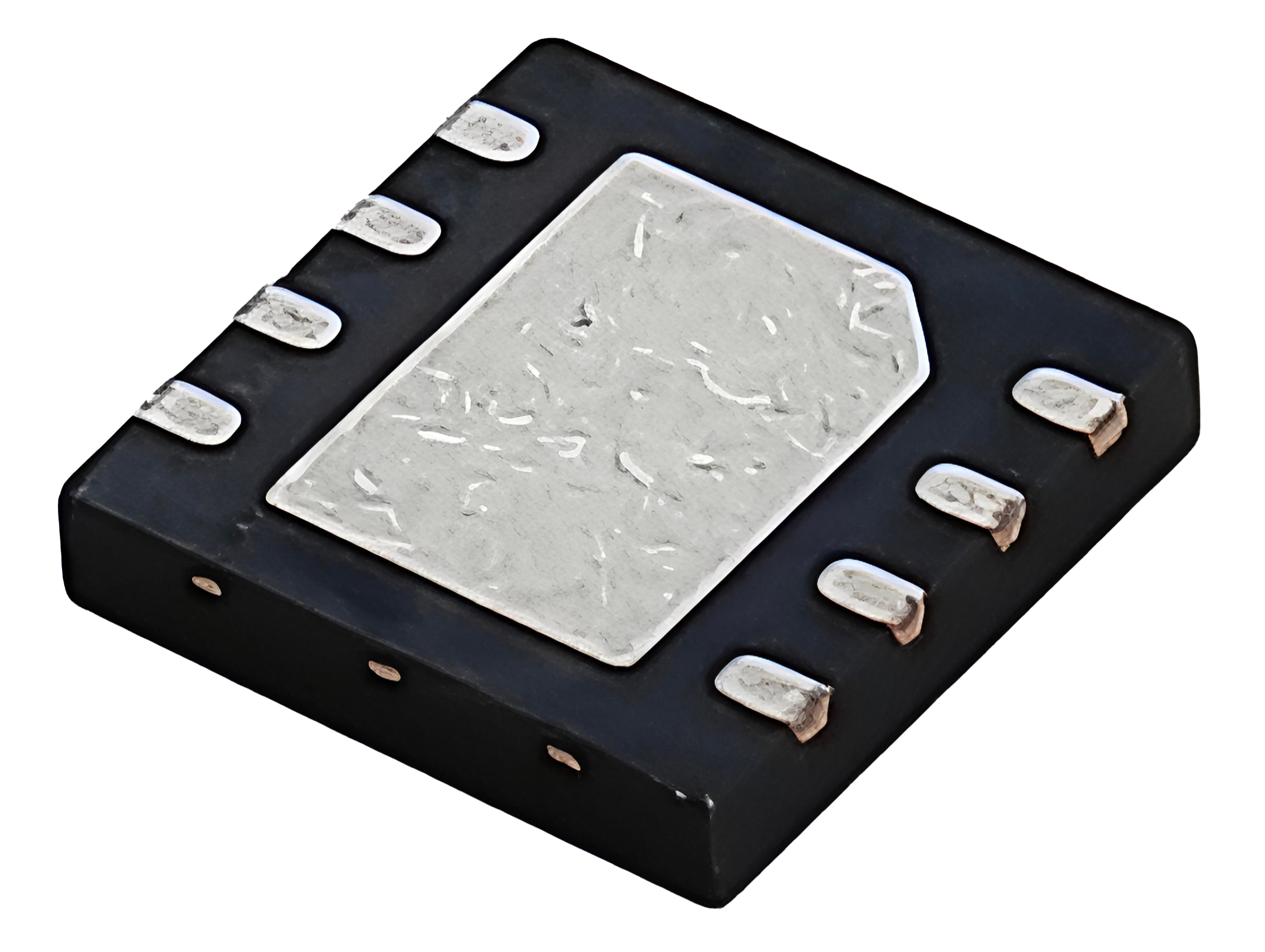

GNNT8141D is a power amplifier based on GaNHEMT, operating at frequencies ranging from DC to 8.4GHz. The typical saturated output power is 12W at 8.1GHz (Psat). The saturation gain is greater than 9.2dB at 8.1GHz, and the drain efficiency is above 45%.

Product Features

• Frequency range: DC - 8.4GHz

• Saturation output power (Psat): 12W at 8.1GHz

• Saturation gain: 9.2 dB @ 8.1 GHz

• Gate efficiency @ Psat: 47% @ 8.1 GHz

• Working voltage: 28V

• Support CW and Pulse operation
