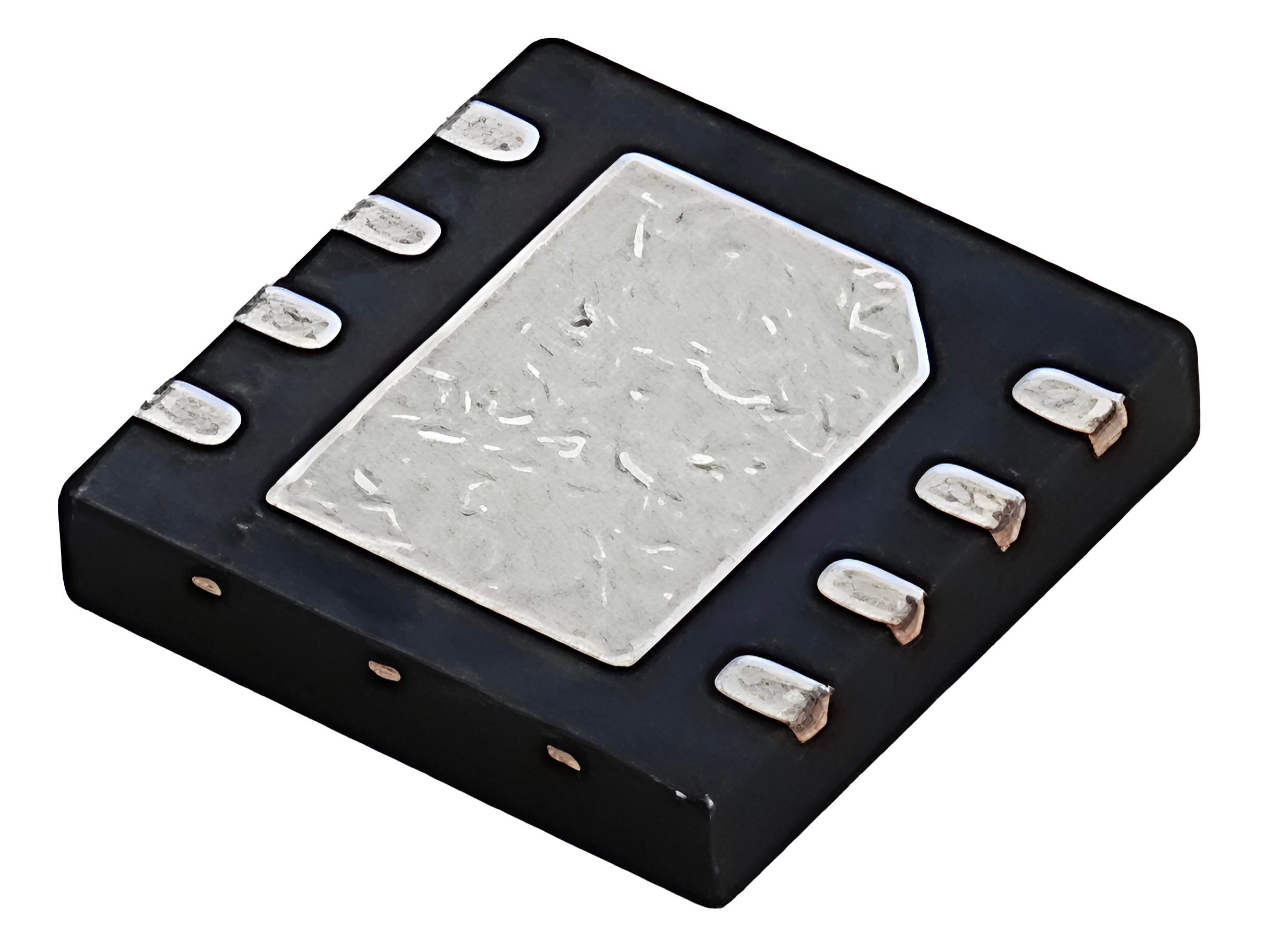

GNNT6138D is a power amplifier based on GaNHEMT, operating at frequencies ranging from DC to 8.0GHz. The typical saturation output power is 7W at 5.8GHz (Psat). The saturation gain is greater than 11dB at 5.8GHz, and the drain efficiency is over 59%.

Product Features

•Frequency range: DC – 8.0GHz

•Saturated output power: 7W @ 5.8GHz

•Saturation gain: 11 dB @ 5.8 GHz

•Drain efficiency: 59% @ 5.8 GHz

•Operating voltage: 28V

•Support CW / Pulse operation
